Copper-clad ceramic laminates (CCLs) feature outstanding thermal conductivity, superior insulation and high current-carrying capability. They deliver excellent solderability and high bonding strength, and can be etched into diverse circuit patterns similar to PCBs. CCLs are widely applied in power electronics, high-power modules, aerospace and other industries.
This system supports high-efficiency automated inline inspection of CCLs. It can be flexibly integrated into customers’ production lines to realize strict quality control. Additionally, it is also applicable to the testing of other semiconductor devices and packages, including discrete components, optoelectronic devices and IGBT power modules.

Product Advantages

Intelligent Defect Assessment

This feature intelligently identifies and statistically analyzes the size, area, and quantity of defects, providing data support for determining product quality.

Automated production line with full-coverage inspection

Achieves automatic loading/unloading, full-coverage inspection with zero omission, intelligent evaluation and post-drying sorting.

Automatic water circulation

Auto water pumping & fixed-height filling before each test minimizes water level and buoyancy interference with testing accuracy.

Auto calibration of each channel

Ensure uniform and realistic imaging

Testing Cases

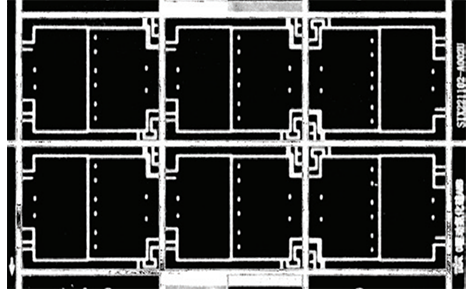

Before intelligent recognition

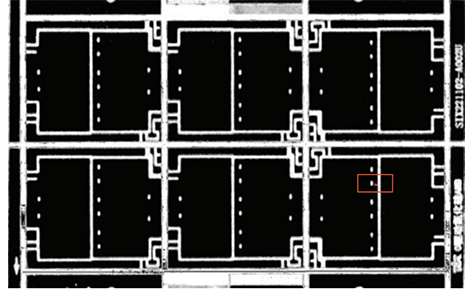

After intelligent recognition

Product Parameters

● System repeatability ± 0.03mm

● Maximum scanning speed 500 mm/s

● Imaging resolution 0.2 × 0.2mm

● System detection frequency: 20MHz or higher

● Three-axis module travel: Customizable according to customer requirements

The system integrates high-precision mechatronics, ultrasonic automatic detection & intelligent evaluation, and drying & automatic sorting subsystems.

The automated electromechanical platform includes feeding, automatic flipping, QR code scanning, material handling, inspection water tank, conveying unit, main frame, motion control and auxiliary modules, drying assembly, as well as unloading and sorting devices.

The phased array ultrasonic system consists of phased array boards, customized high-end phased array probes and wedges, plus intelligent detection and auto-evaluation software.
