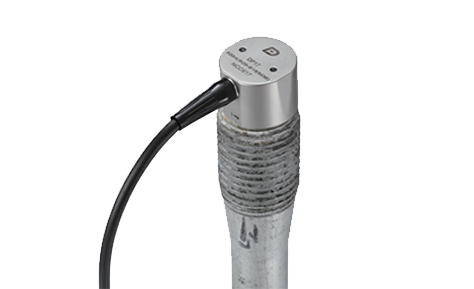

FLEXSCAN Parameter Options

 Phase Array Channels

 Standard Channels

 Configuration

Receive/Transmit

 32/64

 1/2

 Range

 9900 μs

 9900 μs

 Sound velocity

 635–15,240 m/s

 635–15,240 m/s

 Pulse generator

 Inspection mode

 PE/PC

 PE/PC/TT/TOFD

 Pulse Voltage

 50 V/100 V/130 V

 100 V/200 V/400 V

 Pulse mode

 Negative square wave

 Negative square wave

 Pulse width

 30–500 ns

 30–500 ns

 Pulse rise time

 <8 ns

 <8 ns

 PRF

 20 kHz

 6 kHz

 Delay

 10 μs/2.5 ns

 10 μs/2.5 ns

 Number of Focal Points

 1024

 NA

 Focus type

 Real depth/half-wave/projection/arbitrary plane

 NA

 Receiver

 Gain Range

 0–80 dB

 0–110 dB

 Bandwidth

 0.5–18 MHz

 0.5–20 MHz

 Receive delay

 10 μs/2.5 ns

 10 μs/2.5 ns

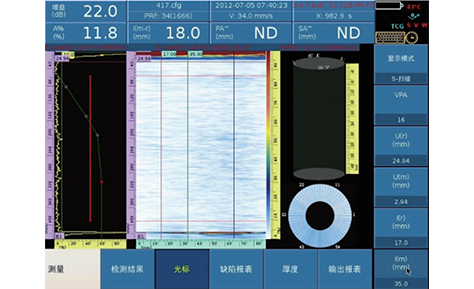

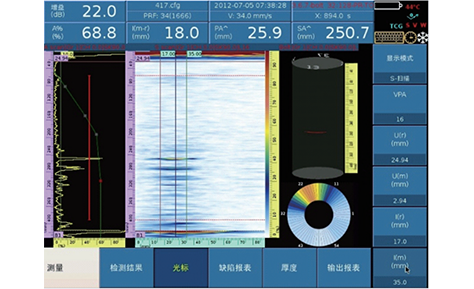

 Scanning and Display

 Scan Type

 Linear/Sector Scan

 NA

 Display Mode

 A/B/C/S-scan

 A/B

 Measurement Units

 mm/inch

 mm/inch

 TCG

 Number of points

 16

 NA

 Maximum gain

 40 dB

 N/A

 Maximum gain slope

 40 dB/μs

 N/A

 Test Report

 Web Format

 Data Storage

 Removable Storage

 USB Flash Drive/SD Card

 Display

 Dimensions

 8.4 inches

 Resolution

 800 x 600 pixels

 Type

 Industrial-grade TFT LCD capacitive touchscreen

 I/O Interface

 USB

 2

 Ethernet

 100 Mb/s

 Video Output

 HDMI

 Encoder

 LEMO 16-pin; single-axis

 Language

 Chinese/English/Russian

 Battery and Power Supply

DC supply voltage

 15 V DC

 Battery Type

 Lithium-ion battery (hot-swappable)

 Continuous operating time

 Approx. 4 hours

 Physical Specifications

 Dimensions

 296 mm × 209 mm × 89 mm

 Weight

 3.5 kg (without battery)
