● Standard Water Tank Dimensions:

1100mm (L) × 1100mm (W) × 400mm (H) [Customizable]

● Workpiece Specifications:

Disc/ring diameter φ ≤ 700mm (φ ≥ 700mm, customizable upon negotiation)

● XYZ Three-Axis Scanning Speed:

X-axis and Y-axis scanning speed ≥ 300mm/s, Z-axis speed ≥ 200mm/s

● Repeatability:

X-axis and Y-axis ≤ 0.03mm, Z-axis ≤ 0.05mm

● Loading/Unloading Gantry Robot:

Maximum speed > 500mm/s, repeatability ≤ 0.05mm

● Standard Water Tank Dimensions:

1100mm (L) x 1100mm (W) x 400mm (H) [Customizable]

● The system adopts a modular design, allowing for the addition of different customized functional modules to suit various inspection objects and requirements.

● It features a customizable workpiece module, enabling users to freely add and define new workpieces, setting key parameters, ultrasonic processes, and scanning parameters. This provides strong scalability, facilitating the inspection of diverse workpieces.

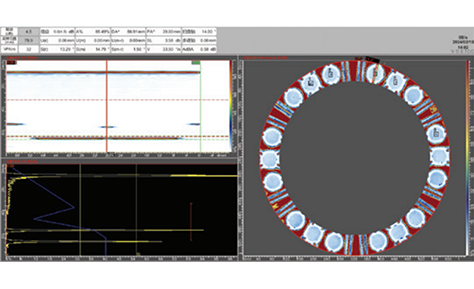

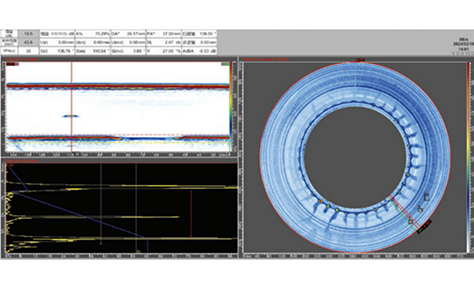

● It includes a polar coordinate circular ring C-scan imaging module, supporting one-dimensional and two-dimensional circular ring-shaped workpiece C-scan imaging.

● It has an alarm marking module, supporting freely configurable alarm conditions. During scanning, suspected defect signals trigger an alarm, which is simultaneously marked in the C-scan view.

● It features an intelligent analysis and evaluation module. After scanning, the system automatically identifies defects based on preset evaluation criteria and records them in a table. Defects can also be manually recorded and deleted for easy manual re-inspection.

● It has a defect rollback and re-inspection function. When manually evaluating defects, users can quickly roll back to the defect's location with a single click and view the ultrasonic waveform at the current point in real time.
