NovaScan L3 is a portable phased array ultrasonic flaw detector integrating PA/UT/TFM/TOFD. Designed for on-site inspection and engineering applications, it delivers high inspection performance while featuring a lightweight and highly integrated design, suitable for non-destructive testing requirements across various industries and working conditions.

Product Advantages

Lightweight Design

Weighs only 2.7 kg, greatly easing on-site operation. Ideal for high-altitude work, confined spaces and outdoor scenarios, it delivers outstanding portability and long-duration usability, while efficiently boosting inspection efficiency.

All-Round Mode, Multi-Purpose Instrument

Integrates four core inspection modes: PA, UT, FMC‑TFM and TOFD. It supports weld inspection, thickness measurement and material flaw detection, meeting inspection demands from routine tasks to large‑scale projects.

High-Performance Configuration, Precise and Efficient

PRF up to 20 kHz enables high-speed scanning for higher efficiency. The 0.5–20 MHz wide bandwidth supports mainstream probes to cut operational costs. 800% A-scan display height clearly shows micro defects, reducing missed detection and misjudgment risks.

A Cost-Effective Choice

Full-featured yet compact configuration delivers professional, comprehensive testing performance at a cost-effective price. Ideal for testing institutions and engineering teams.

Testing Cases

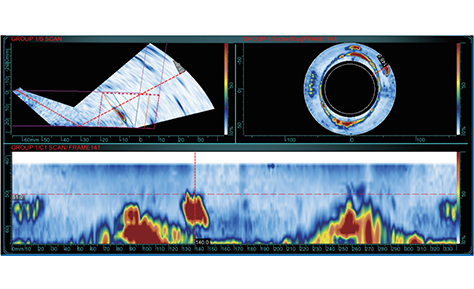

Specialized Imaging Algorithm Support for Nozzle Fillet Weld Inspection

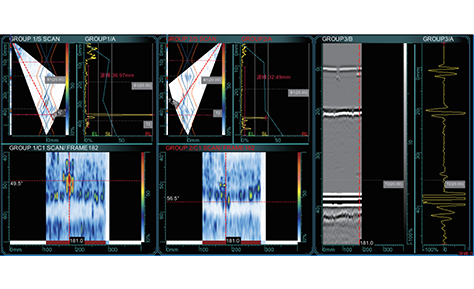

Integrated Application of Multiple Testing Modes for Wide Coverage

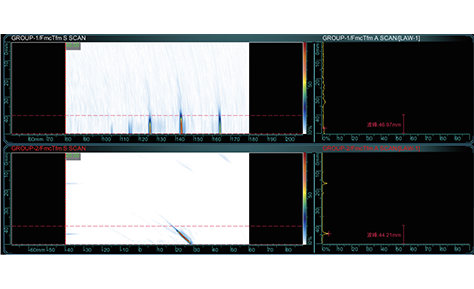

FMC-TFM algorithm with full coverage

Product Parameters

NOVASCAN L3		PA	UT
Configuration	Receive/Transmit	32/64	1/1
Pulse Generator	Detection Mode	PE/PC	PE/PC/TT/TOFD
	Pulse Voltage	10 V–100 V/1 V	100 V / 200 V / 400 V
	Pulse mode	Negative square wave	Negative square wave
	Pulse width	25–1000 ns / 2.5 ns	30–1000 ns / 2.5 ns
	Pulse rise time	<4 ns	<8 ns
	PRF	20 kHz	10 kHz
	Delay	20 μs/2.5 ns	20 μs/2.5 ns
Receiver	Gain range	0–120 dB	0–120 dB
	Bandwidth	0.5–20 MHz	0.5–20 MHz
	Receive delay	20 μs / 2.5 ns	20 μs/2.5 ns
Data acquisition	Sampling rate	100 MHz	100 MHz
	ADC resolution	16-bit	14-bit
	Maximum A-scan points	16,384	16,384
	Number of focus points	1024	NA
	Focus Type	Real Depth/Half-Wave/Projection/Arbitrary Surface/Dynamic Focus	NA
	Detection	FW/HW+/HW-/RF	FW/HW+/HW-/RF
	Synchronous	Start pulse or gate	Start pulse or gate
	Scan Type	Sector/Linear/Compound/Full Focus	NA
Scan and Display	Display Modes	A/B/S/C/FMC-TFM/PWI-TFM/3D/TopC/Strip-scan	A/B/C/Strip Chart
	Maximum Fluctuation height	800%	800%
	Measurement unit	mm/inch	mm/inch
DAC	Number of points	16	16
TCG	Number of points	16	16
	Gain Range	40 dB	40 dB
	Maximum gain slope	40 dB/10 ns	40 dB/μs
Gate	Gates	A/B/C/I + Custom Gate
	Number of gates	Unlimited
	Gate Trigger Mode	Peak/Rise
Test Report		Word, PDF, Excel
I/O Interface	USB 3.0	2 USB 3.0
	Ethernet	1 port, 1000 Mbps
	Video Output	HDMI 1.4b
	Encoder	Ruilian 16-pin
Languages		Chinese/English/Russian/French/Italian/German
Power and Battery	DC	15V DC
	Battery Type	Lithium-ion battery 10.8V 97.2Wh (hot-swappable)
	Charging Method	Charges via the main unit; device can be operated simultaneously
	Continuous operating time	Approx. 4 hours (1 battery)
Physical Specifications	Dimensions	302 mm × 230 mm × 84 mm
	Weight	2.7 kg (without battery) 3.2 kg (with 1 battery)
	Display	10.1 inches, 1920 × 1200 pixels
	Operating Temperature	-10°C to 45°C
