NovaScan V1 is a full-featured phased array tester. It supports phased array inspection and dual-channel independent TOFD, and is the world’s first portable device with refined 3D TFM imaging. It also enables million-focus 2D TFM and FMC for clear visualization of micro defects.

Product Advantages

Multi-mode Combined Inspection and Real-time Imaging

Supports FMC-TFM, PWI-TFM with real-time HD imaging, 3D PA, TOFD and UT. Dual independent channels run simultaneous TOFD+UT inspection for complex scenarios.

Full-Scenario Adaptability and Flexible Expansion

Compatible with linear, matrix and other array probes, suitable for corrosion monitoring, structural component and energy pipeline inspection. Supports software iteration upgrades for future application needs.

Powerful Scanning Process Simulation

Supports nozzle junction weld inspection with real-time updated slices, wizard-guided operation and 3D simulation. Real-time viewing of parameters and scanning procedures greatly improves inspection efficiency.

Intelligent Defect Recognition

Built-in debonding and corrosion detection algorithms enable intelligent defect analysis for bonding, pipeline and tank inspection, enhancing hidden damage detection capability.

Testing Cases

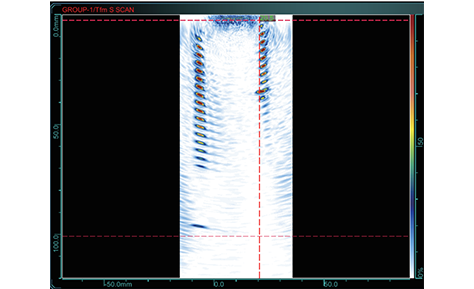

Bolt FMC-TFM Inspection

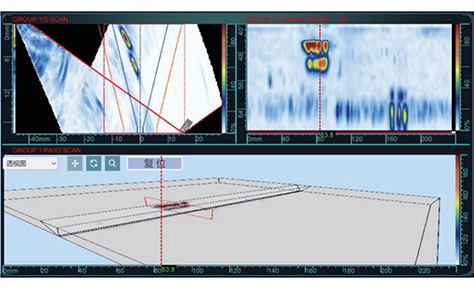

PA-3D Scanning

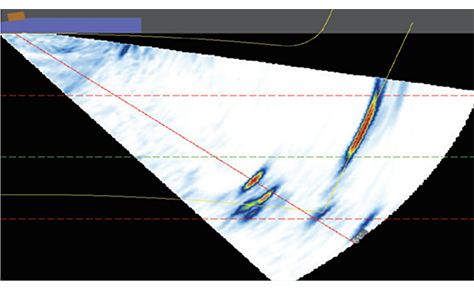

Nozzle Inspection

Product Parameters

NOVASCAN V1 Parameter Options		Phased Array Channels	Conventional Channels
Configuration	Receive/Transmit	32/128	2/2
Configuration	Sound Speed	340–15,240 m/s	340–15,240 m/s
Pulse generator	Inspection mode	PE/PC	PE/PC/TT/TOFD
	Pulse Voltage	50 V/100 V	100 V/200 V/400 V
	Pulse mode	Negative square wave	Negative square wave
	Pulse width	25–1000 ns / 2.5 ns	25–1000 ns / 2.5 ns
	Pulse rise time	<8 ns	<8 ns
	PRF	40 kHz	24 kHz
	Delay	20 μs/2.5 ns	20 μs/2.5 ns
Data Acquisition	Sampling rate	100 MHz	100 MHz
	ADC resolution	10-bit	12-bit
	Number of focus points	512	N/A
	Focus type	Real depth/half-wave/projection/arbitrary surface	NA
	Detection	FW/HW+/HW-/RF	FW/HW+/HW-/RF
Receiver	Gain Range	0–120 dB	0–120 dB
	Bandwidth	0.5–20 MHz	0.5–20 MHz
	Receive delay	20 μs/2.5 ns	20 μs/2.5 ns
Scanning and Display	Scan Type	Linear/Sector/Full Focus/Composite Sector	NA
	Display Modes	A/B/C/S/3D/FMC-TFM/PWI-TFM/3D/TopC/Strip-scan	A/B/C/Strip Chart
	Measurement Units	mm/inch	mm/inch
TCG	Number of points	16	16
	Maximum gain	40 dB	40 dB
	Maximum gain slope	40 dB/μs	40 dB/μs
Gate	Gate	A/B/C/I + Custom Gate	A/B/C/I + Custom Gates
	Number of gates	Unlimited	Unlimited
	Gate Threshold	0–100%	0–100%
	Maximum Fluctuation	200%	200%
Test Report		Word, PDF, Excel
Data Storage	Removable Storage	USB Flash Drive/SSD Card (Built-in) 128GB
Data Storage	Single File Size	4 GB
Display	Dimensions	10.4 inches
	Viewing area	211 mm × 158 mm
	Resolution	1024 x 768 pixels
	Type	Industrial-grade IPS capacitive touchscreen
I/O Interface	USB	2
	Ethernet	1; 1000 Mbps
	Wi-Fi	Supports USB external Wi-Fi transmission (customizable)
	Video Output	HDMI 1.4b
	Encoder	LEMO 16-pin
Language		Chinese/English/Russian/French/Italian/German
Battery and Power Supply	DC Supply Voltage	15 V DC
	Battery Type	Lithium-ion battery 11.25V/99.6Wh (hot-swappable)
	Continuous operating time	Approx. 5 hours
Physical Specifications	Dimensions	360 mm × 260 mm × 130 mm
Physical Specifications	Weight	6 kg (without battery)
