Wheel Probe Series

● Performance Features:
1. Equipped with a built-in water storage coupling system and encoder, delivering excellent coupling performance and enabling high-efficiency C-scan imaging.
2. Adopts tire material with extremely low attenuation.
3. Optional angle adjustment block is available, with the probe incident angle adjustable from 0° to 20°.
4. Compatible with automatic scanning devices, suitable for inspection of large-area flat or slightly curved surfaces.

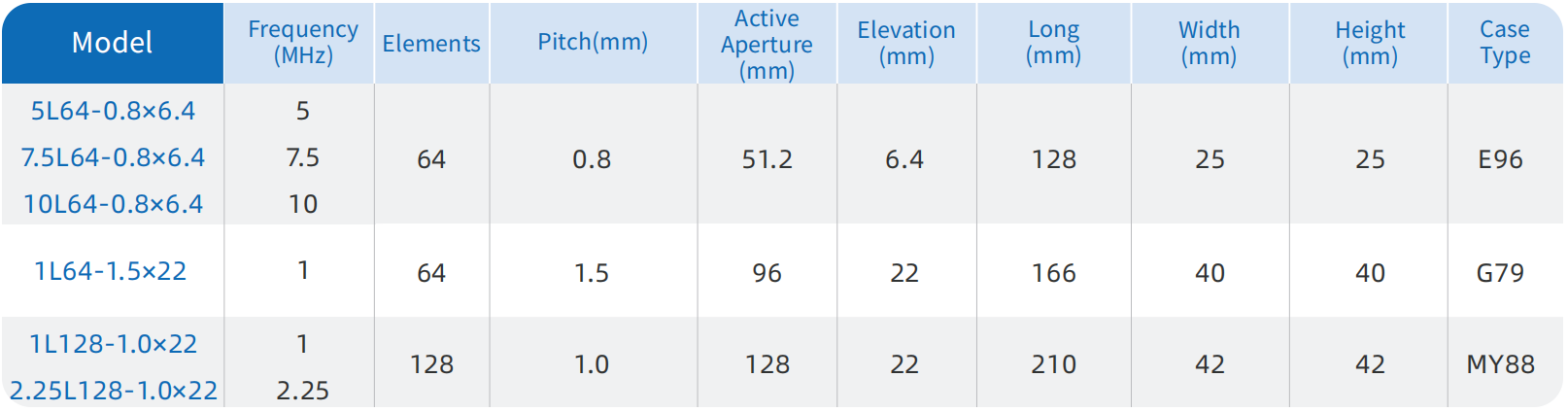

Product Parameters
