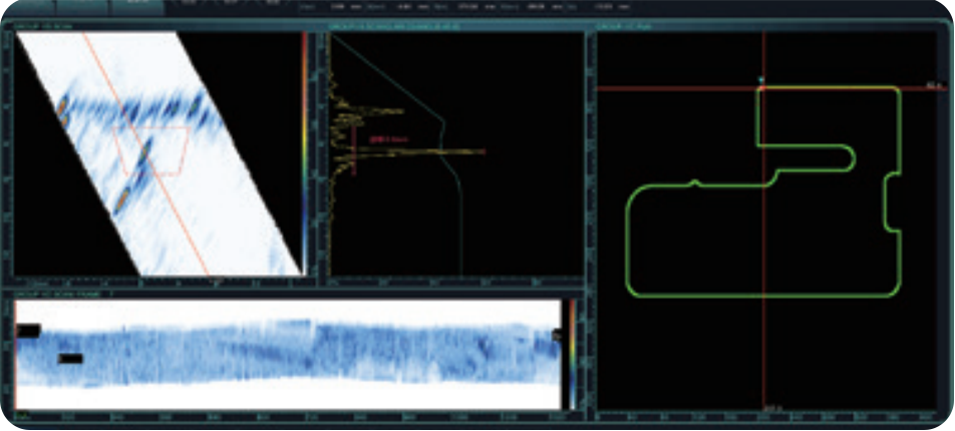

Phased array offline analysis software interface is shown below. Drag the cursor to view weld section signal changes at any position, and judge pass/fail via red-green indicators in the weld quality projection view (rightmost trajectory view).

Curved welds can be unfolded into a linear C-scan view for intuitive defect qualitative and quantitative analysis. When automatic defect evaluation is enabled, scanning defect signals are captured per standard criteria. The system automatically assesses defect acceptability and generates reports for fast defect location.

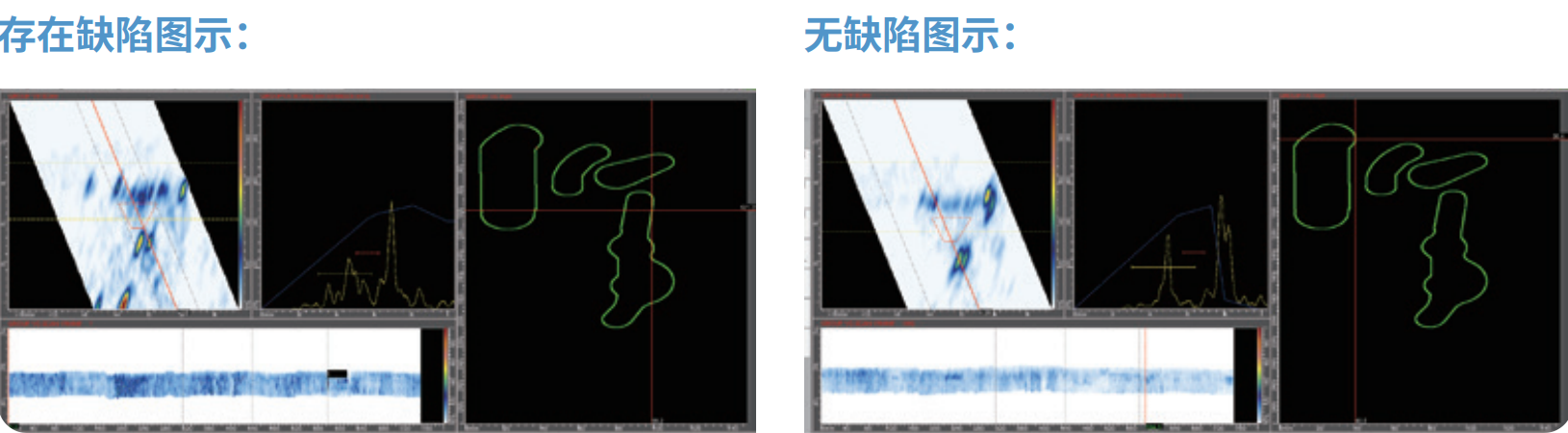

The following are typical friction stir weld inspection results for the heat dissipation components of a new energy vehicle electronic control system:

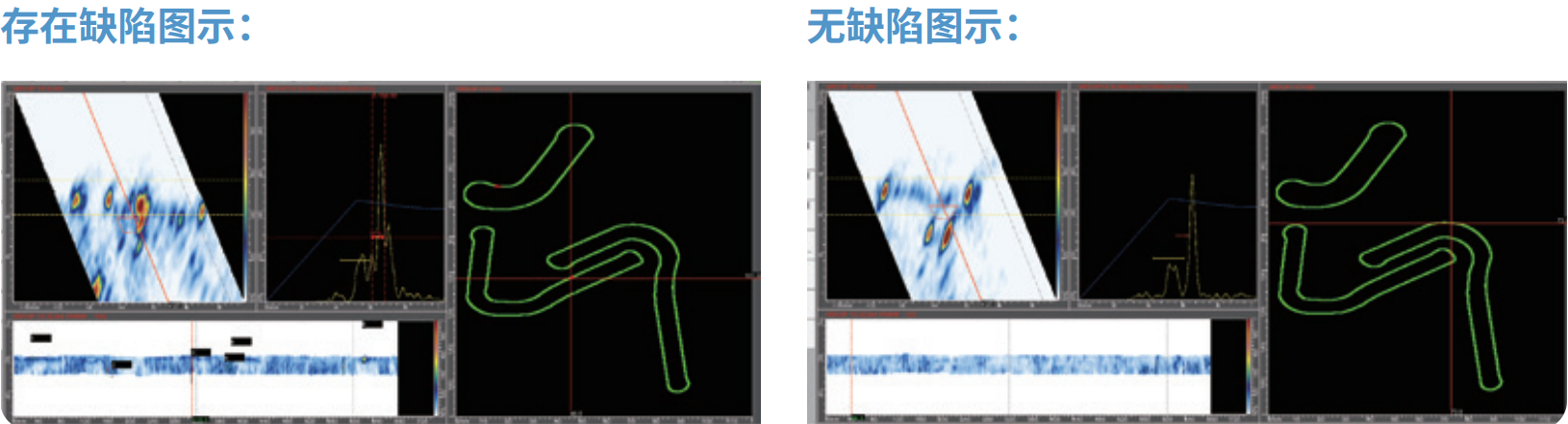

The following are typical inspection results of friction stir welds for a new energy vehicle heat pump assembly component:

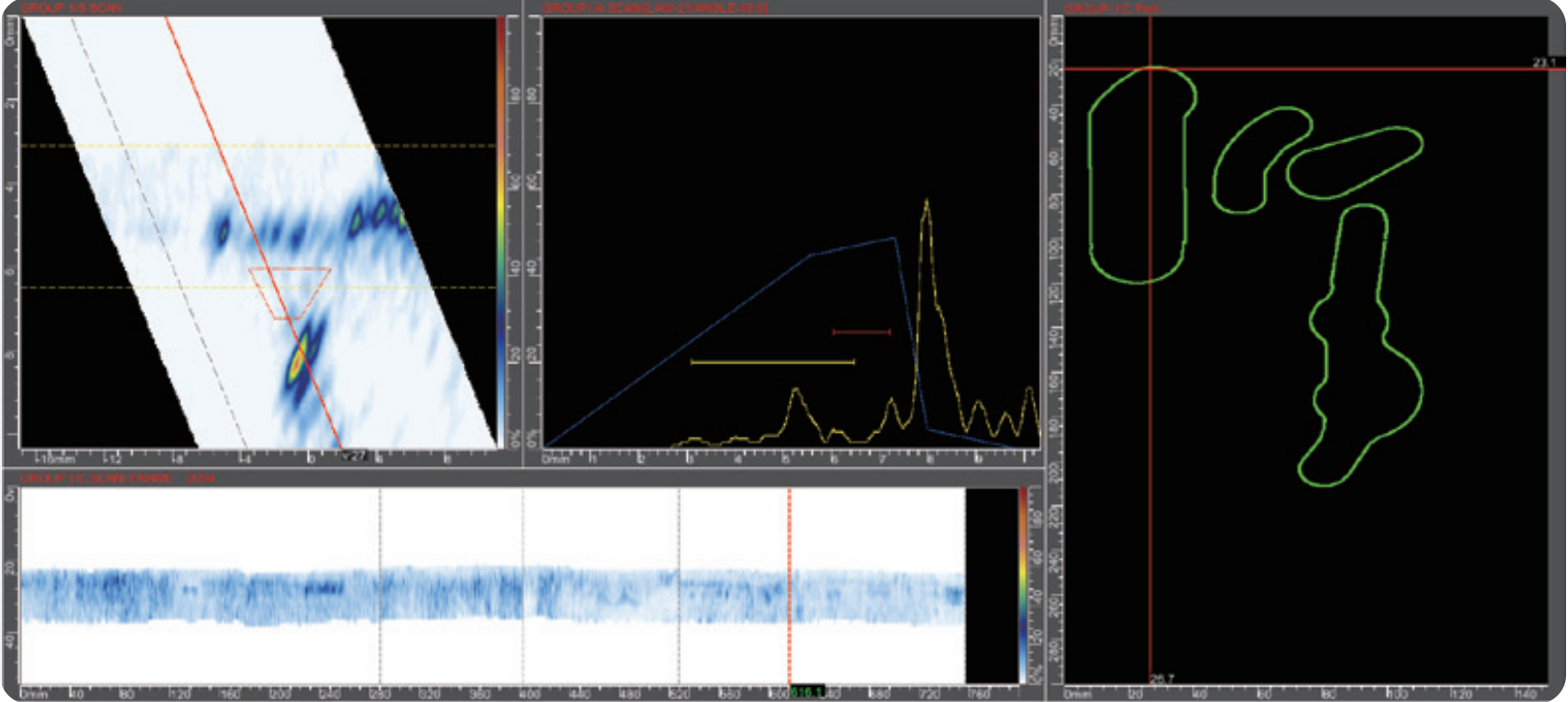

The following are the friction stir weld inspection results for a type of automotive die-cast component.
