Robust L1 |
Phased Array Channels |
|
|
Configuration |
Receive/Transmit |
16/128 |
|
Sound Speed |
340–15,240 m/s |
|
|
Pulse Generator |
Detection Mode |
PE/PC |
|
Pulse voltage |
20 V–100 V / 10 V |
|
|
Pulse Type |
Negative square wave |
|
|
Pulse width |
30–1000 ns / 2.5 ns |
|
|
Pulse rise time |
<10 ns |
|
|
PRF |
20 kHz |
|
|
Delay |
20 μs / 2.5 ns |
|
|
Receiver |
Gain range |
0–120 dB |
|
Bandwidth |
0.5–20 MHz |
|
|
Receive delay |
20 μs / 2.5 ns |
|
|
Data acquisition |
Sampling rate |
100 MHz |
|
ADC resolution |
12-bit |
|
|
Number of Focusing Rules |
1024 |
|
|
Focusing Types |
True depth / Half-path / Projection / Arbitrary surface |
|
|
Detection |
FW/HW+/HW-/RF |
|
|
Synchronization |
Trigger pulse or gate |
|
|

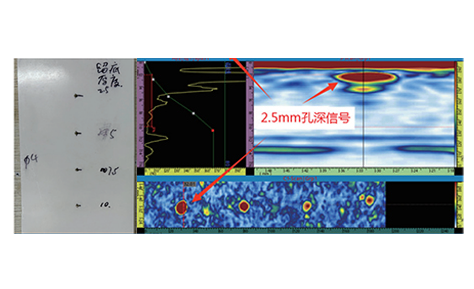

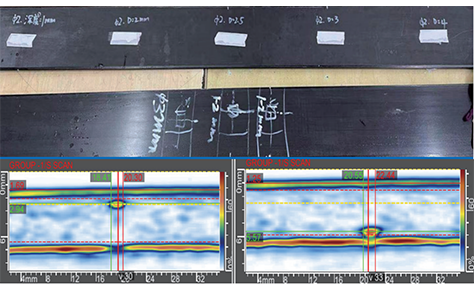

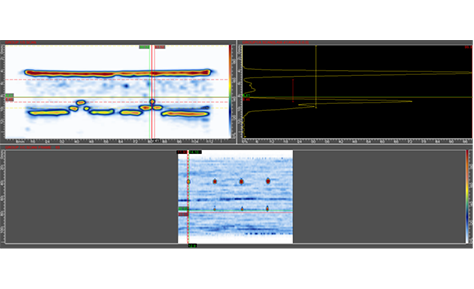

Scanning and Display |
Scan Type |
TFM/Sector/Linear/Compound |
|
Display Modes |
A/B/S/C/3D/FMC-TFM/PWI-TFM/Top C/Strip Chart |
|
|
Measurement Units |
mm/inch |
|
|
A-scan Peak Amplitude |
200% |
|
|
Adaptive filtering |
Yes |
|
|
Bandpass filter |
Full-time data averaging |
|
|
TCG |
Number of points |
16 |
|
Maximum gain |
40 dB |
|
|
Gate |
Gate |
A/B/C/I + Custom Gate |
|
Number of gates |
Unlimited |
|
|
Gate Threshold |
0–100% |
|
|
Gate Trigger Mode |
Peak/Rise |
|
|
Test Report |
WORD, PDF, EXCEL |
|
|
Interface |
Ethernet |
1000 Mb/s |
|
Encoder |
Dual-axis DB15 |
|
|
Language |
Chinese/English/Russian/French/Italian/German |
|
|
Power Supply |
DC |
12V DC |
|
Ambient Temperature |
Operating Temperature |
-10 to 45°C |
|
Physical Specifications |
Dimensions |
152 mm × 116 mm × 87 mm |
|
Weight |
1 kg |
|
