The newly‑launched ROBUST L3C is an embedded standalone‑computing phased‑array ultrasonic board. Built upon the proven ROBUST L3 hardware platform, it features an innovative all‑in‑one design that deeply integrates phased‑array ultrasonic functionality with an industrial computing platform. It performs inspection tasks independently with only a display connected, eliminating the need for an external PC. Compared with conventional inspection solutions, the ROBUST L3C reduces system components, simplifies wiring and cuts installation and maintenance costs, delivering a lightweight, highly reliable solution for on‑site inspection and automated equipment integration.

Product Advantages

Highly Integrated Design

The ROBUST L3C combines high‑performance phased‑array inspection capability with industrial computing power. It supports multiple inspection modes including PA, UT, TOFD and TFM, and can be directly integrated into automated inspection equipment, robotic inspection platforms and smart manufacturing production lines. Its compact all‑in‑one structure not only saves equipment installation space, but also greatly improves system stability and environmental adaptability. It delivers an efficient and reliable automated inspection platform for industries such as aerospace, new‑energy, rail transit, automobile manufacturing and high‑end equipment manufacturing.

Versatile Functions for Diverse Inspection Modes

The ROBUST L3C supports a wide range of advanced inspection modes including PA, UT, TOFD, FMC‑TFM and PWI‑TFM. It integrates real‑time display, image analysis, defect evaluation, data management and report generation into one unit. In addition, it offers comprehensive software features and SDK development interfaces to enable software customization and function expansion for diverse inspection requirements, meeting the demands of automated equipment development and system integration.

On‑board Industrial Platform, Instant‑on Inspection

Featuring a high‑performance on‑board industrial computing platform, the ROBUST L3C runs Multipulse inspection software natively without additional industrial PCs or laptops. It enters the inspection interface right after power‑on for true standalone operation, greatly boosting on‑site deployment efficiency while lowering equipment maintenance costs.

HDMI HD Output for Simplified Operation

Featuring a standard HDMI HD output port, the ROBUST L3C connects to monitors and industrial touchscreens for real‑time inspection data display. All inspection operations are achievable via touchscreen. Its intuitive interface and user‑friendly controls satisfy varied application needs in laboratories and industrial sites.

Testing Cases

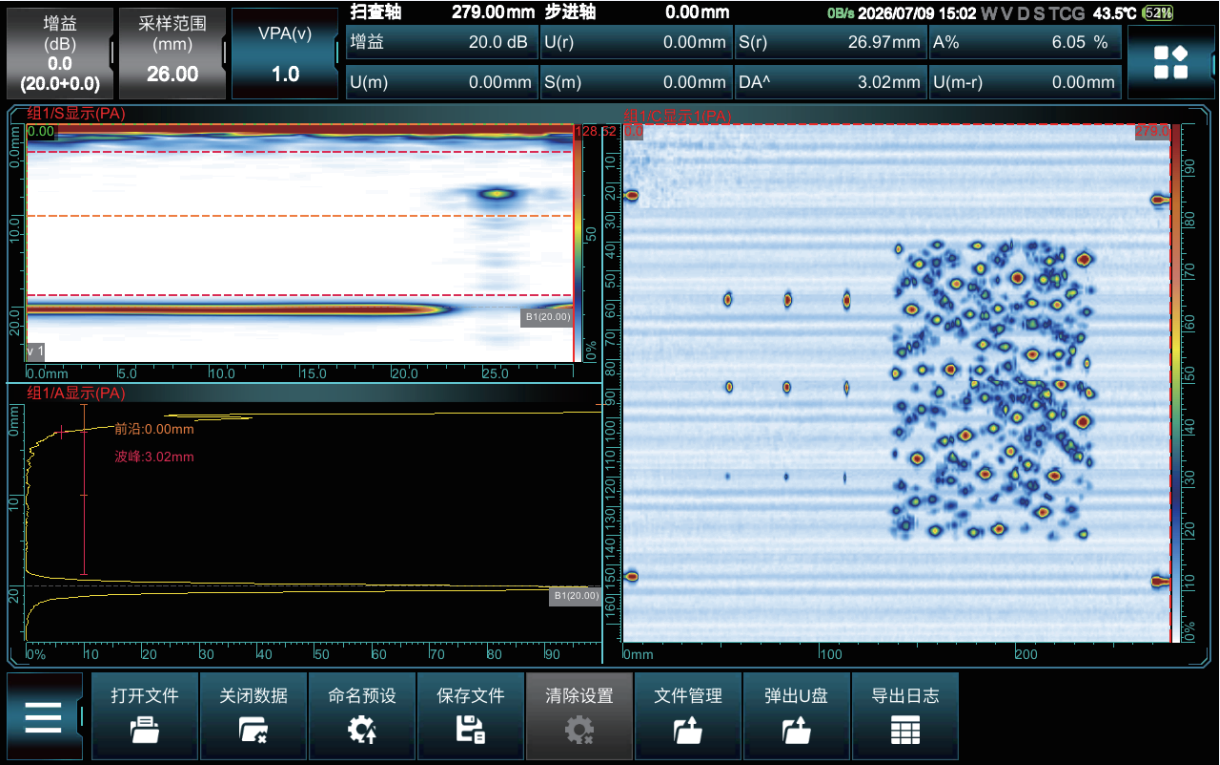

Special imaging algorithm support for tube‑seat fillet welds

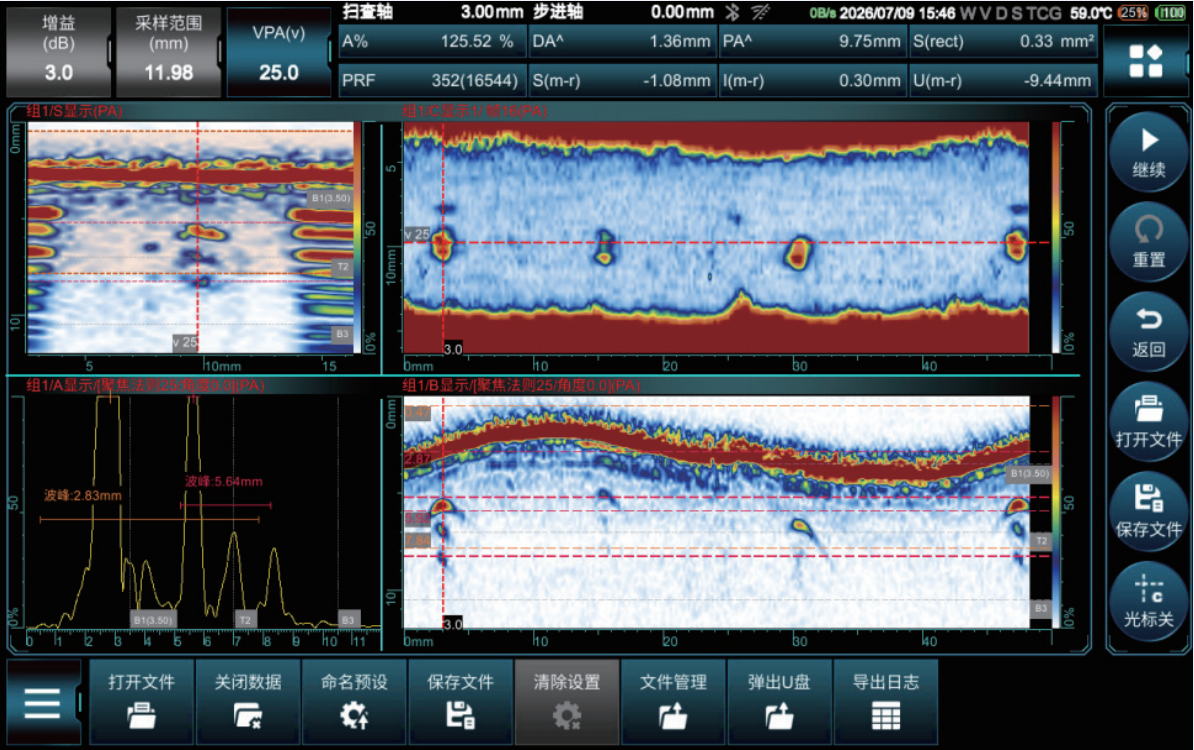

Comprehensive TFM Algorithm Coverage

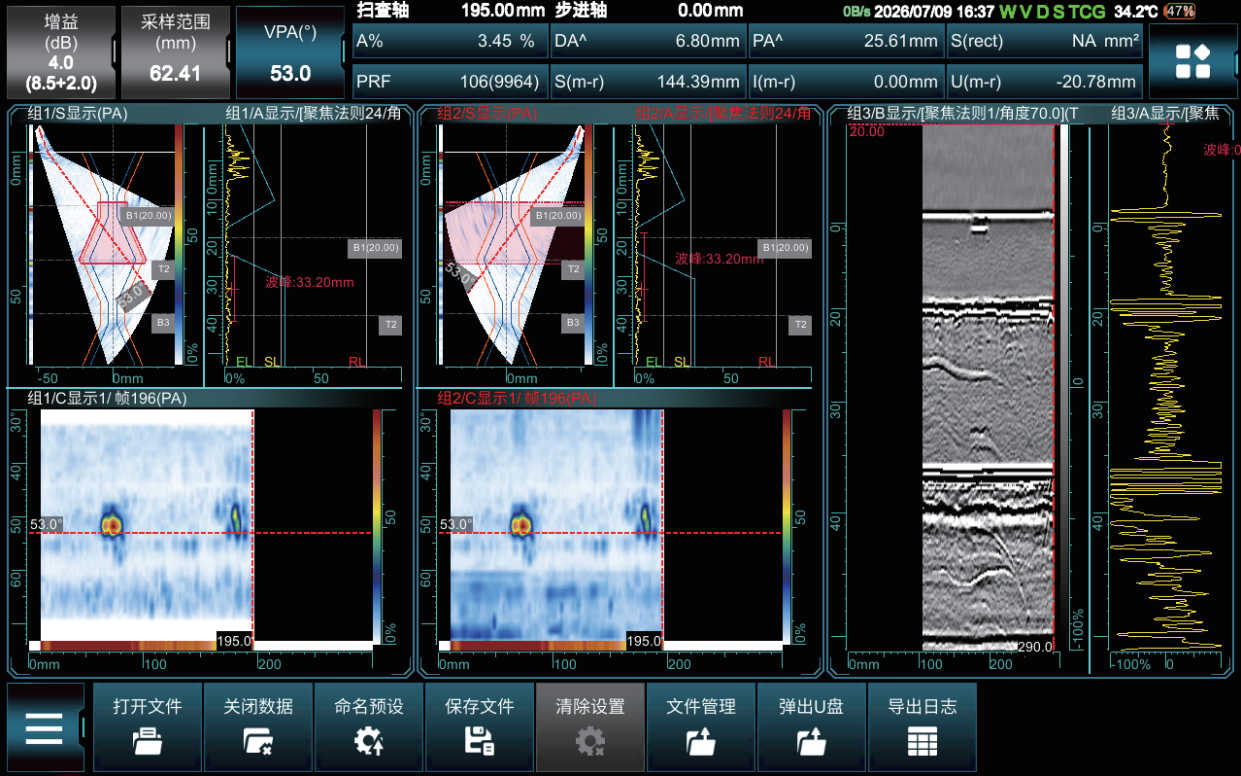

Integrated Multi‑mode Inspection for Broad Applications

Product Parameters

NOVASCAN L3

Configuration

Rx/Tx channels

32/64PR、16/64PR

1/1

Pulser

Inspection mode

PE/PC/TT

PE/PC/TT/TOFD

Pulse voltage

10V-100V/1V

100V/200V/400V

Pulse type

Negative square wave

Pulse width

25-1000ns/2.5ns

30-1000ns/2.5ns

Rise time

<4ns

<8ns

PRF

20kHz

10kHz

Delay

20μs/2.5ns

Receiver

Gain range

0-120dB

Bandwidth

0.5-20MHz

Receive delay

20μs/2.5ns

Sampling rate

100MHz

Max. Ascan points

16bit

14bit

Max. Ascan points

16384

Number of focal laws

1024

Focusing types

Truedepth / Halfsoundpath / Projection / Arbitrary surface / Dynamic depth focusing

Detection

FW/HW+/HW-/RF

Scan types

Scan & Display

Display modes

A/B/S/D/C/TFM/TopC/Strip chart

A/B/C/Strip chart

Max. signal amplitude

800%

Measurement units

mm/inch

DAC

Number of points

TCG

Number of points

Max. gain slope

40dB/10ns

40dB/μs

Adaptive filtering波

Yes

Bandpass filter器

Full-time data averaging

Gates

Gate types

A / B / C / I + userdefined gates

Number of gates

Unlimited

Gate trigger mode

Peak / Leadingedge

Inspection Report

Word、PDF、EXCEL

I/O Interfaces

USB3.0

2 × USB 3.0

Ethernet

1 × 1000Mb/s

DC input voltage

RL 16-pin

Language

DC input voltage

Power

DC input voltage

15V DC

Physical

Dimensions

321mm×217mm×80mm

Weight

2.8Kg
