Robust M1 |
Parallel Parameter Specifications |
|
|
Configuration |
Receive/Transmit |
4/4, 8/8 |
|
Sound Speed |
340–15,240 m/s |
|
|
Pulse Generator |

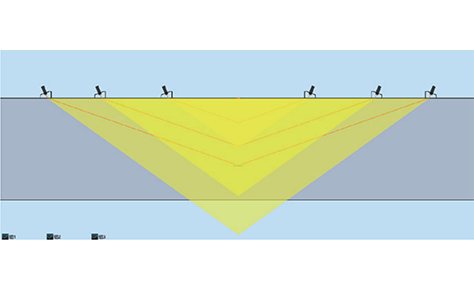

Inspection mode |
PE/PC/TT/TOFD |
|
Pulse voltage |
100 V/200 V/400 V |
|
|
Pulse Type |
Negative square wave |
|
|
Pulse width |
25–1000 ns / 2.5 ns |
|
|
Pulse rise time |
<8 ns |
|
|
PRF |
96 kHz/48 kHz |
|
|
Delay |
20 μs/2.5 ns |
|
|
Data Acquisition |
Sampling Rate |
100 MHz |
|
ADC resolution |
12-bit |
|
|
Detection |
FW/HW+/HW-/RF |
|
|
Maximum Fluctuation |
800% |
|
|
Receiver |
Gain Range |
0–120 dB |
|
Bandwidth |
0.3–25 MHz |
|
|
Receive delay |
20 μs / 2.5 ns |
|
|

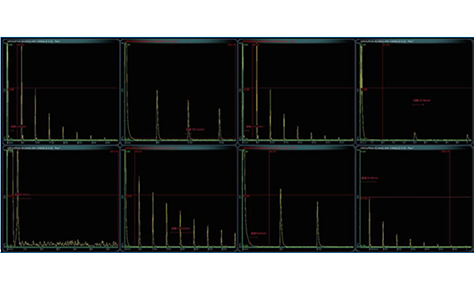

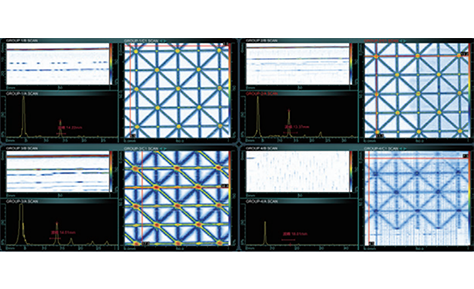

Display Mode |
A/B/C/D/Strip Chart/FFT |
|
|
Measurement Units |
mm/inch |
|
|
DAC |
Number of points |
16 |
|
TCG |
Number of points |
16 |
|
Maximum gain |
40 dB |
|
|
Maximum gain slope |
40 dB/μs |
|
|
Bandpass filter |
Supported |
|
|
Gates |
Gate |
A/B/C/I+ Custom Gate |
|
Gate Threshold |
0–100% |
|
|
Gate Trigger Mode |
Peak/Rise |
|
|
Test Report |
Word, PDF, Excel |
|
|
Languages |
Chinese/English/Russian/French/German/Italian |
|
|
I/O Interface |
Ethernet |
1000 Mb/s |
|
Encoder |
LEMO 16-pin |
|
|
Power supply |
DC supply voltage |
15 V DC |
|
Physical Specifications |
Dimensions |
360.5 mm × 200 mm × 60.7 mm |
|
Weight |
2.5 kg |
|
|
Ambient Temperature |
Operating Temperature |
-10 to 45°C |
|
Storage Temperature |
-40–60°C |
|
|
Relative Humidity |
20%–90% RH (+40°C) |
|
