ROBUST P1 Series PA ultrasonic boards feature superior performance and high reliability, serving as an ideal platform for automated testing. Widely used in manufacturing, aerospace, transportation and new energy industries, they efficiently deliver accurate inspection solutions and accelerate the development of automated inspection technology. The series also provides reliable technical support and innovative solutions to optimize inspection workflows and elevate quality control, boosting industrial advancement.

Product Advantages

Rich optional configurations

● Optional models: 32/64PR, 32/128PR, 16/128PR, 16/64PR
● Multiple display modes including A/B/S/C/3D and combined displays, with full-data encoder recording

Supports secondary development

● Equipped with extended software and hardware interfaces, supporting secondary development.
● Suitable for various automated phased array ultrasonic testing system platforms.

Supports 2D/3D TFM technology

● Supports 3D and 2D TFM techniques, with a maximum imaging resolution of up to 2048×2048, delivering clear imaging and greatly improving the detectability of small defects.
● 3D real-time process simulation.
● Diverse gate types for easy elimination of interference signals.

Intelligent Defect Analysis

● Customizable intelligent defect analysis module, supporting automatic detection and analysis of various defect types including weld defects, pipeline corrosion, and delamination defects in composite plates.
● Supports nozzle fillet weld inspection with real-time update of weld cross-section views.

Testing Cases

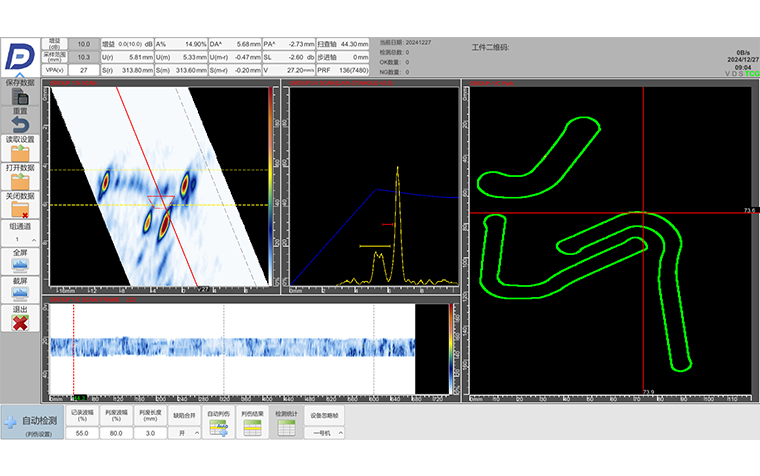

Excellent Automation Integration Capability

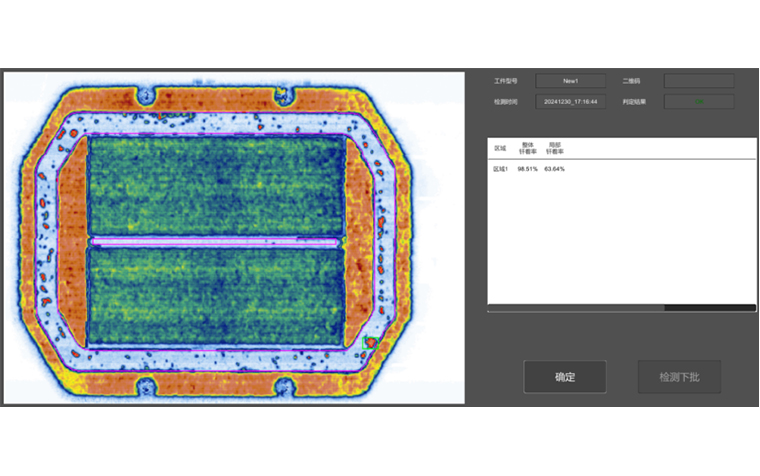

Enables efficient batch inspection

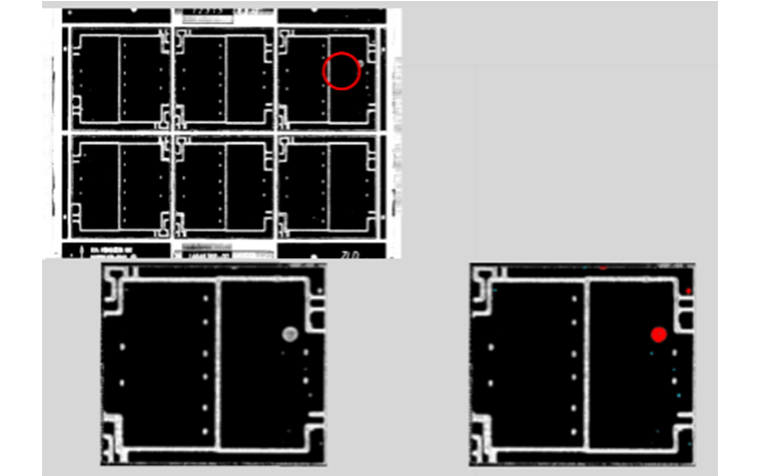

Intelligent Defect Identification and Analysis

Supports DLA/DMA probes

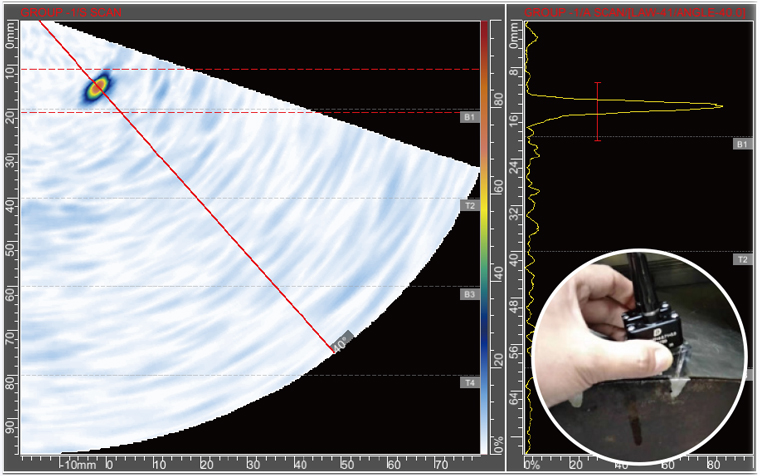

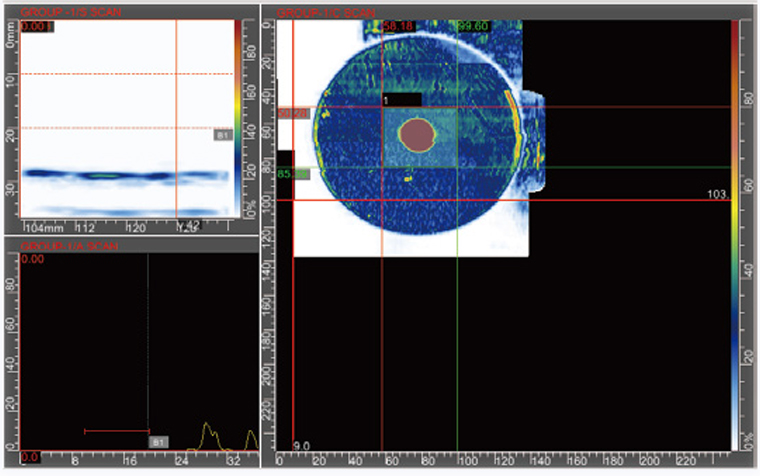

Powerful Corrosion Detection

Product Parameters

Robust P1		Phased Array Channels	Standard Channels (Optional)
Configuration	Receive/Transmit	32/128	2/2
Configuration	Sound Speed	340–15,240 m/s	340–15,240 m/s
Pulse generator	Inspection mode	PE/PC	PE/PC/TT/TOFD
	Pulse voltage	20–100 V/10 V	100 V/200 V/400 V
	Pulse mode	Negative square wave	Negative square wave
	Pulse width	25–1000 ns / 2.5 ns	25–1000 ns / 2.5 ns
	Pulse rise time	<8 ns	<8 ns
	PRF	40 kHz	24 kHz
	Delay	20 μs/2.5 ns	20 μs/2.5 ns
Receiver	Gain Range	0–120 dB	0–120 dB
	Bandwidth	0.9–20 MHz	0.5–20 MHz
	Receive delay	20 μs / 2.5 ns	20 μs/2.5 ns
Data acquisition	Sampling rate	100 MHz	100 MHz
	ADC resolution	10-bit	12-bit
	Number of focusing rules	512	N/A
	Focusing Type	Real depth/Half-wave/Projection/Arbitrary surface	NA
	Detection	FW/HW+/HW-/RF	FW/HW+/HW-/RF
	Synchronization	Start pulse or gate	Start pulse or gate
	Maximum Fluctuation	200%	200%
Scanning and Display	Scan Type	TFM/Sector/Linear/Compound	NA
	Display Modes	A/B/S/C/3D/FMC-TFM/PWI-TFM/FMC-PCI/PWI-PCI/Top C/Strip Chart	A/B/C/Strip Chart
	Measurement Units	mm/inch	mm/inch
Adaptive filtering		Available	NA
Bandpass filter		Full-time data averaging	NA
DAC	Number of points	16	16
TCG	Number of points	16	16
	Maximum Gain	40 dB	40 dB
	Maximum gain slope	40 dB/μs	40 dB/μs
Gate	Gate	A/B/C/I + Custom Gate
	Number of gates	Unlimited
	Gate Threshold	0–100%
	Gate Trigger Mode	Peak/Rise
Full Focus	Maximum Points	4096×1024
	Full-Focus Aperture	128 emitters
	Full-focus mode	TT, TTT, TTTT, TTTTT, LL, LLL, LLLL, LLLLL, TLT, TLL, LTT
Test Report		Word, PDF, Excel
	Ethernet	1000 Mb/s
	Encoder	LEMO 16-Pin
Language		Chinese/English/Russian/French/German/Italian
Power	DC	15 V DC
Ambient Temperature	Operating Temperature	-10 to 45°C
	Storage Temperature	-40 to 60°C
	Relative Humidity	20%–90% RH (at +40°C)
Physical Specifications	Dimensions	350 mm × 245 mm × 55 mm
Physical Specifications	Weight	3.4 kg
