With its outstanding performance and flexible adaptability, the ROBUST series phased array ultrasonic boards have become a leading platform in the field of automated inspection. They are widely used in manufacturing, aerospace, transportation, new energy and other industries, helping enterprises achieve efficient quality management and production optimization solutions, and driving continuous progress in the automated inspection industry.

Model Comparison Overview

Model Parameters	Channel Configuration	Pulse Voltage	Bandwidth	A-Scan Amplitude
ROBUST P1	32/128	20-100V/10V	0.9-20MHz	200%
ROBUST P2	64/128	20-120V/10V	0.35-25MHz	800%
ROBUST P3	64/128	10-200V/10V	0.18-27MHz	1600%

Product Advantages

Software Development Kit (SDK)

Supports full coverage of 2D scanning, PA, UT, TFM (FMC/PWI/3D compatible), PCI (FMC/PWI), and TOFD, accelerating system integration and deployment.

Improve quality control and production efficiency

By optimizing inspection processes, potential issues can be identified early, reducing production costs, improving product yield and enhancing industrial competitiveness.

Flexibly cope with complex inspection tasks

The ROBUST series supports free switching between TFM and phased array functions, and provides simultaneous detection with two independent TOFD channels (P1 optional) and phased array channels. This greatly improves detection efficiency and accuracy, adapting to a wide range of complex inspection tasks. Whether for mass production or the highly demanding aerospace industry, the ROBUST series delivers robust technical support.

Customized Solutions for Advancing Industry Development

Powered by innovative technology and robust functions, the ROBUST series delivers flexible customized inspection solutions for multiple industries, enabling high-quality data acquisition in complex scenarios and advancing automated inspection technology.

Testing Cases

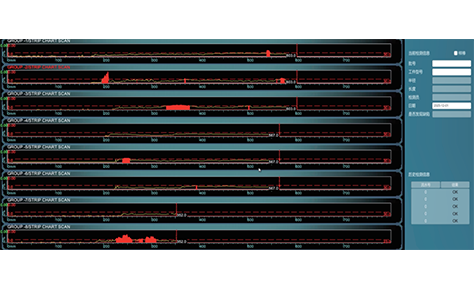

Bar Inspection(Strip Chart)

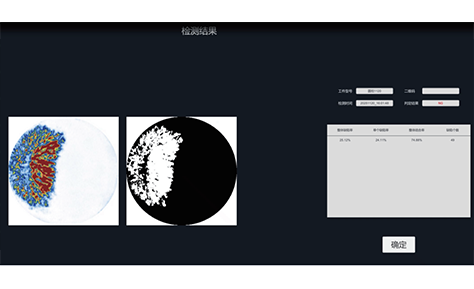

Target Inspection (Auto Bonding Rate Evaluation)

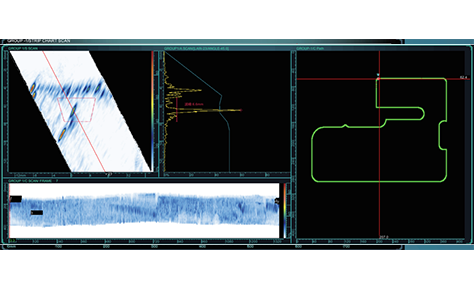

FSW Inspection (Weld Path Imaging)

Product Parameters

Robust P3		Phase-array control channels		Standard Channels
Configuration	Receive/Transmit	64/128		2/2
	Sound Speed	340–15,240 m/s		340–15,240 m/s
Pulse generator	Inspection mode	PE/PC		PE/PC/TT/TOFD
	Pulse voltage	10–200 V/1 V		100 V / 200 V / 400 V
	Pulse mode	Bipolar square wave		Negative square wave
	Pulse width	20–1250 ns / 2.5 ns		25–1000 ns/2.5 ns
	Pulse rise time	<10 ns		<10 ns
	PRF	40 kHz		24 kHz
	Delay	20 μs/2.5 ns		20 μs/2.5 ns
Data Acquisition	Sampling Rate	200 MHz		200 MHz
	ADC resolution	16-bit		16-bit
	Focusing Type	True depth / Half-path / Projection / Arbitrary surface / Dynamic focusing		NA
	Number of Focusing Rules	1024		NA
	Detection	FW/HW+/HW-/RF		FW/HW+/HW-/RF
	Maximum Fluctuation	1600%		1600%
Receiver	Gain Range	0–120 dB		0–120 dB
	Bandwidth	0.18–27 MHz		0.2–30 MHz
	Receive delay	20 μs/2.5 ns		20 μs/2.5 ns
Scanning and Display	Scan Type	Full-focus/Linear/Sector/Compound		NA
	Display Modes	A/B/C/S/3D/FMC-TFM/PWI-TFM/FMC-PCI/PWI-PCI/TopC/Strip Chart		A/B/C/Strip Chart
	Measurement Units	mm/inch
TCG	Number of points	16
	Maximum gain	40 dB
	Maximum gain slope	40 dB/10 ns	40 dB/μs
Gate	Gates	A/B/C/I + Custom Gate
	Number of gates	Unlimited
	Gate Threshold	0–100%
Full Focus	Number of points	1024×1024
Test Report		Word, PDF, Excel
Interface	Ethernet	1000 Mb/s
	Encoder	Dual-axis, LEMO 16-pin
Language		Chinese/English/Russian/French/German/Italian
Power	DC supply voltage	15 V DC
Physical Specifications	Dimensions	368.9 mm × 250.6 mm × 90.1 mm
	Weight	5 kg
