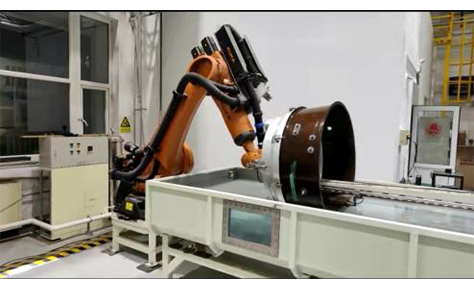

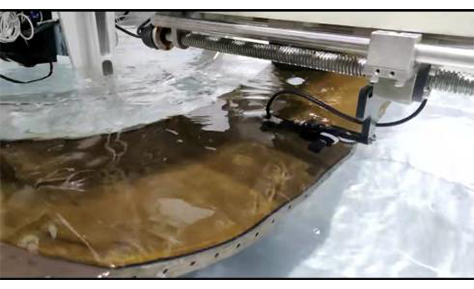

For conical carbon fiber-metal riveted parts, a six-axis robot handles workpieces while a multi-axis extended arm holds the phased array probe, enabling automatic loading/unloading and efficient inspection.

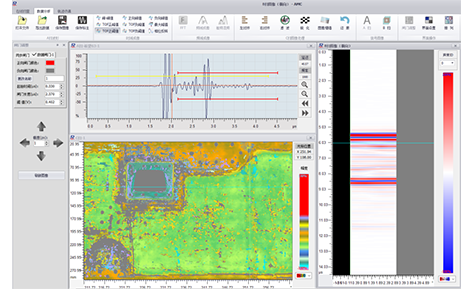

Combined mechanical and phased array electronic scanning realizes fast data acquisition and imaging, detecting internal delamination and rivet-induced fiber damage in carbon fiber components.
The multi-channel phased array system boosts single-part inspection efficiency over 12 times compared with single-channel equipment.
