The MOS07 is specifically designed for inspecting complex pipe weld seams, providing accurate inspection data. Its flexible probe clamping system securely supports a single probe with a maximum clamping width of 48mm, compatible with various probes.
Customized weld angles: The probe angle can be adjusted to match the weld angle, ensuring excellent coupling.
Quick chain change: The quick-release chain design allows operators to quickly and easily switch between different pipe diameters, significantly improving on-site work efficiency.

Product Advantages

Accurate Weld Positioning

● Suitable for weld inspection of branch pipes and main pipes with 90° straight insertion
● Includes a dual-axis encoder with angle and position encoding, enabling accurate positioning of the probe seat fillet weld position via software.

Auxiliary Defect Judgment

● Works with phased array instrument software to display real-time cross-sectional views of each scan location, aiding in defect judgment.
● A small magnetic wheel automatic crawler drives the scanner to scan the branch pipe axially; controlled by a handle button, simple operation.
● Powered by DC24V

Excellent probe coupling

● The probe clamping arm adapts to pipe curvature and swings at an angle to ensure excellent probe coupling
● The probe clamping shaft adapts to the drop in the main pipe and adjusts automatically

Wide testing range

● Applicable testing range: Φ100mm≤branch pipe outer diameter≤Φ300mm, main pipe outer diameter≥Φ600mm

Product Parameters

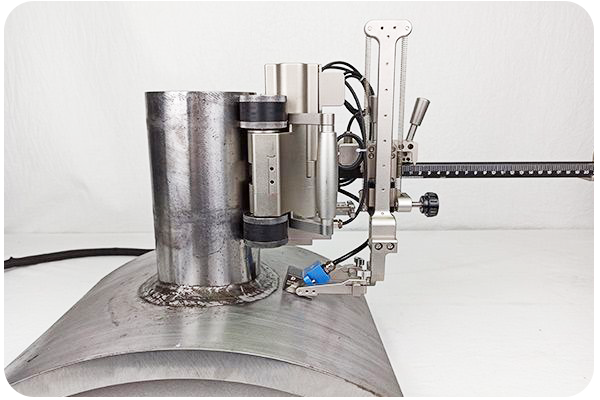

一、MOS 07 DD Electric

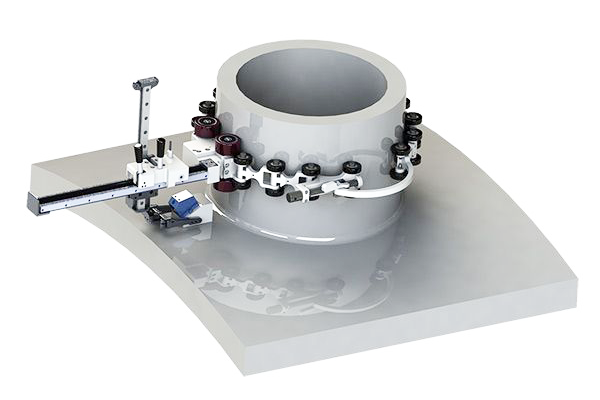

二、MOS 07 Manual
