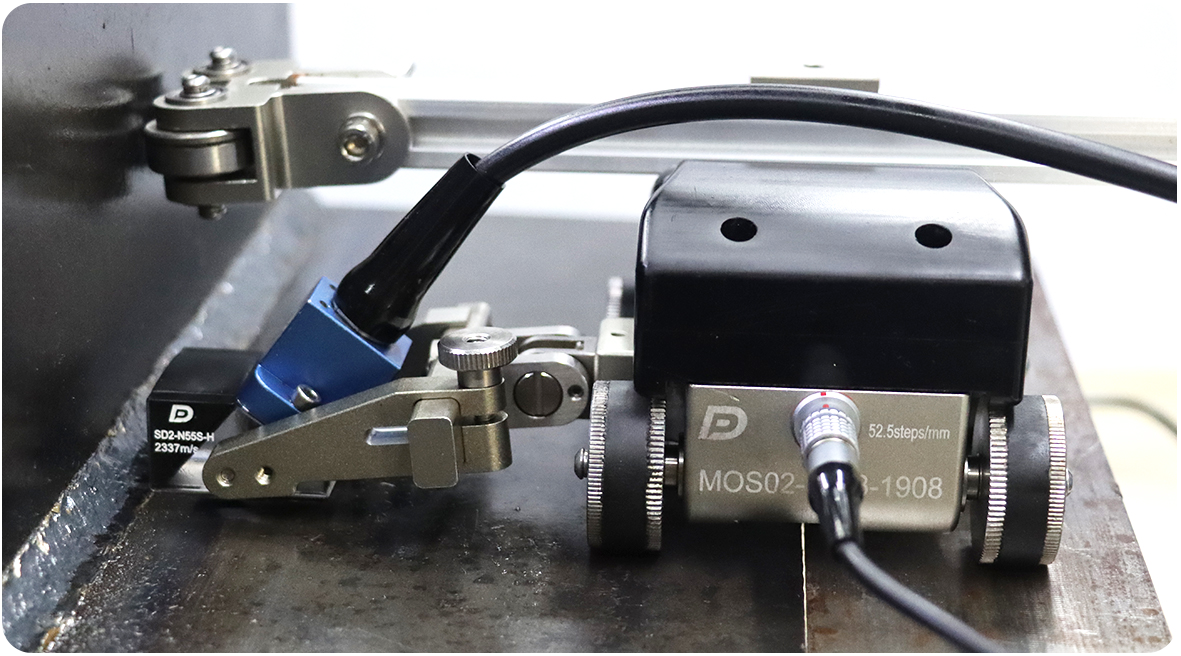

● Features:

1. Flexible assembly and disassembly: After removing the TKY web support rod, it transforms into the "MOS-01" scanner;

2. Adopts a mouse-like ergonomic design for convenient and comfortable operation;

3. The encoder is hidden within the "mouse," preventing data loss due to encoder slippage and extending encoder lifespan;

4. Equipped with four strong magnetic wheels, combined with compression springs, ensuring a tight fit between the phased array probe and the workpiece surface, guaranteeing effective coupling;

5. The probe clamping direction can be changed by 90° as needed, compatible with both left-right and front-back scanning;

6. Width range for clamping wedges: 22mm-42mm.
