ROBUST F1 adopts a high-speed processing chip, delivering stable, reliable high-speed operation with lower power consumption and higher energy efficiency.
Its multi-channel design maximizes the strengths of array and dual-array probes, broadening the application of phased array technology.
Widely applied in nuclear power, aerospace, high-speed railway, electric power and shipbuilding, it satisfies high-precision and high-resolution NDT requirements.
It excels in challenging scenarios including austenitic stainless steel welds, dissimilar metal welds and thick-walled high-attenuation components.
Two models (128/128PR and 256/256PR) are available to meet diverse application needs.

Product Advantages

● Supports phased array multi-beam parallel inspection to significantly boost linear scan imaging efficiency.
● Enables 3D TFM inspection with real-time visual imaging.
● Delivers higher resolution via 2D FMC-TFM and PWI-TFM, with up to 4 million data points per frame.

● Supports simultaneous PA and TFM inspection. A single unit adapts to diverse testing scenarios, enabling more accurate analysis via cross-mode comparison.
● Dual linear/dual array probes deliver higher signal-to-noise ratio and superior performance over conventional linear array probes in complex inspection conditions.

● New bipolar pulse generator boosts energy for thick-wall penetration and improves defect detection rate.
● Max pulse repetition frequency reaches 40 kHz, ideal for high-speed automated inspection.

● Supports high-speed high-precision multi-channel data acquisition and real-time ultrasonic signal processing, with data compatible for C-scan and S-scan imaging.
● Optional UT channels enable PA-UT and PA-TOFD combined inspection.

Testing Cases

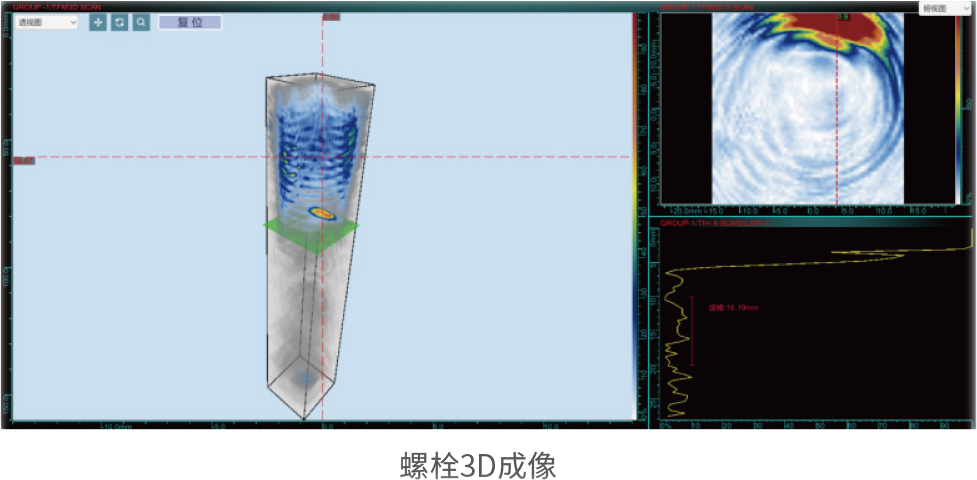

Supports 3D TFM and 2D TFM for matrix arrays

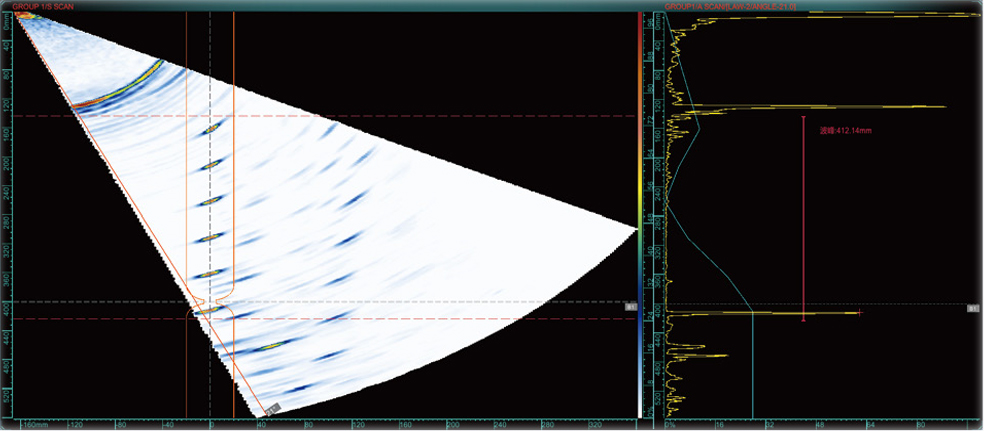

Tackles challenging inspection tasks

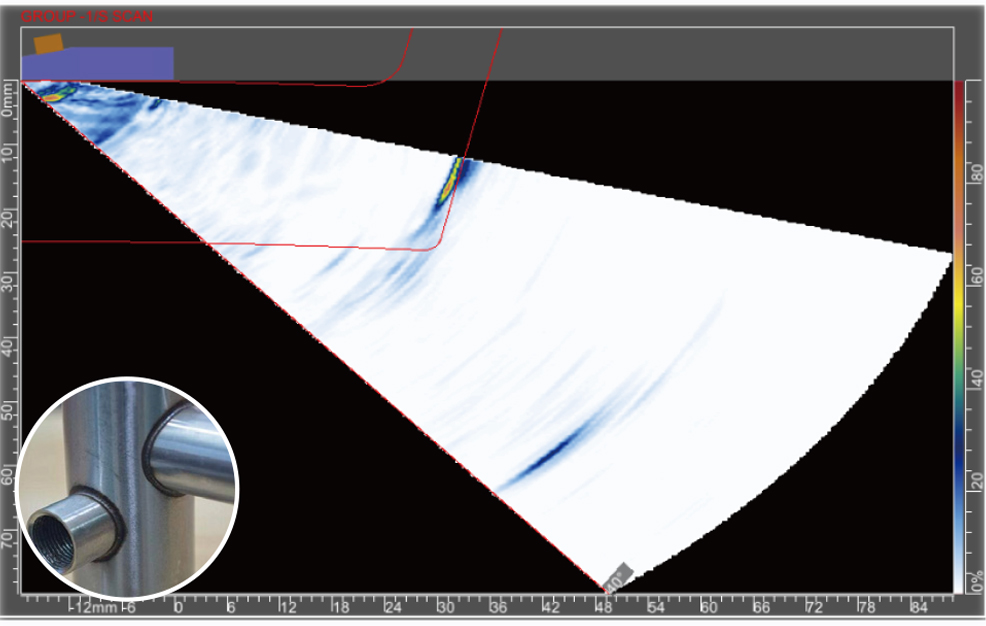

Supports a wide range of workpiece types

Product Parameters

Robust F1		Phased Array Channels
Configuration	Receive/Transmit	256/256, 128/128, 64/64
Configuration	Sound Speed	340–15,240 m/s
Pulse Generator	Detection Mode	PE/PC
	Pulse voltage	40 V / 70 V / 100 V / 130 V / 150 V / 200 V
	Pulse Type	Bipolar square wave
	Pulse width	20–1000 ns / 2.5 ns
	Pulse rise time	<8 ns
	PRF	40 kHz
	Delay	20 μs/2.5 ns
Receiver	Gain range	0–120 dB
	Bandwidth	0.4–25 MHz
	Receive delay	20 μs / 2.5 ns
Data Acquisition	Sampling Rate	200 MHz
	ADC resolution	16-bit
	Number of Focusing Rules	1024
	Focusing modes	True depth / Half-path / Projection / Arbitrary surface
	Detection	FW/HW+/HW-/RF
	Synchronization	Leading Edge or Gated
	Maximum Peak	800%
Scanning and Display	Scan Type	Linear/Sector/Compound/Full Focus
	Display Modes	A/B/S/C/TFM/3D/TopC/Strip Chart
	Measurement Units	mm/inch
Adaptive filtering		Yes
Bandpass filter		Full-time data averaging
DAC	Number of points	16
TCG	Number of points	16
TCG	Maximum gain	40 dB
Gate	Gate	A/B/C/I + Custom Gate
	Number of gates	Unlimited
	Gate Threshold	0–100%
	Gate Trigger Mode	Peak/Rise
Test Report		WORD, PDF, EXCEL
I/O Interface	Ethernet	1000 Mb/s, 10 Gb/s
I/O Interface	Encoder	Dual-axis, LEMO 16-pin
Languages		Chinese/English/Russian/French/German/Italian
Power		15 V DC
Ambient temperature	Operating Temperature	-10 to 45°C
	Storage Temperature	-40 to 60°C
	Relative Humidity	20%–90% RH (at +40°C)
Physical Specifications	Dimensions	390.03 mm × 243 mm × 227 mm (256/256), 388.53 mm × 243 mm × 137 mm (128/128), 266 mm × 216 mm × 65 mm (64/64)
Physical Specifications	Weight	12.2 kg (256/256) 7 kg (128/128) 4 kg (64/64)
