Robust S1 single-channel ultrasonic card features high cost-effectiveness, great reliability, easy integration and flexible scalability, perfectly meeting core demands for basic inspection, portable use and automated integration.
Widely applied in aerospace material testing, automotive component NDT and biomedical ultrasonic imaging, it provides precise and reliable results for thickness measurement and defect detection.

Product Advantages

Universal Interface

Boasting excellent interface compatibility, it supports mainstream interfaces for easy connection to computers, sensors, monitors and other external devices, enabling fast data transmission and sharing. No complex adapters are needed, saving both time and cost.

Wideband Detection

With wideband performance, it accurately acquires and processes signals over a broad frequency range, producing clear, reliable results for fine defect detection and complex material analysis to meet diverse application needs.

High Voltage Output

Excellent Industrial Design

Adopting a black-gray industrial design with a concise and elegant look, the device uses high-strength housing materials for superior pressure and corrosion resistance, ensuring long-term stable operation.
Its excellent sealing performance prevents dust and moisture ingress, delivering reliable inspection even in harsh working conditions.

Testing Cases

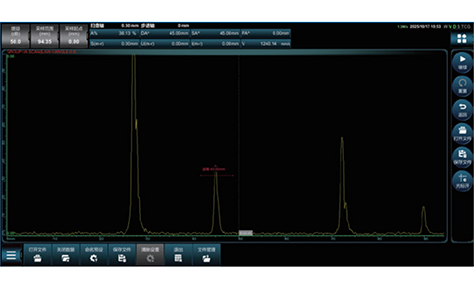

Precision Thickness Measurement

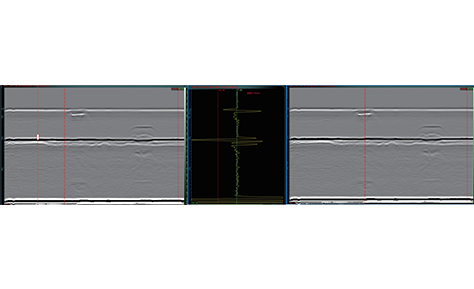

TOFD Weld Inspection

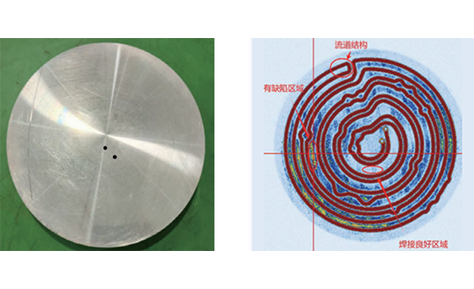

Immersion C-scan for Brazed Water-Cooled Plates

Product Parameters

Robust S1		Specifications
Configuration	Receive/Transmit	1/1
Configuration	Sound Speed	340–15,240 m/s
Pulse Generator	Inspection mode	PE/PC/TT/TOFD
	Pulse voltage	100 V/200 V/400 V
	Pulse Type	Negative square wave, spike pulse
	Pulse width	20–1000 ns / 2.5 ns
	Pulse rise time	<8 ns
	PRF	40 kHz
Data acquisition	Sampling rate	200 MHz
	ADC resolution	16-bit
	Detection	FW/HW+/HW-/RF
	Maximum Peak-to-Peak	800%
Receiver	Gain Range	0–120 dB
	Bandwidth	1 MHz–34.5 MHz
	Display Mode	A/B/C/D/Strip Chart/FFT
	Measurement Units	mm/inch
DAC	Number of points	32
TCG	Number of points	32
	Maximum gain	40 dB
	Maximum gain slope	40 dB/μs
Gate	Gate	A/B/C/I + Custom Gate
	Gate Threshold	0–100%
	Gate Mode	Depth/Path Length
Output File Format		Word, PDF, Excel
Languages		Chinese/English/Russian/French/Italian/German
I/O Interfaces	Ethernet	1000 Mb/s
I/O Interfaces	Encoder	Dual-axis, LEMO 16-pin
Power	DC	15 V DC
Physical Specifications	Dimensions	120 mm × 90 mm × 40 mm
Physical Specifications	Weight	0.4 kg
